Pen Tool
Draw freehand or straight horizontal or vertical lines on an image.
Note: Pen and other tools in the Snagit Editor toolbar are available to annotate images. To draw your viewer’s attention while you record video, try Screen Draw. To enhance video you have already recorded, share your video to Camtasia Editor.
Draw a Pen Line
- Click the Pen tool in the Snagit Editor toolbar.
Note: If the tool is not visible in the toolbar, click the More dropdown. To customize your toolbar, see Customize the Snagit Toolbar.
- Select a Quick Style or edit the tool properties to customize the tool. See Tool Properties.
- Click and drag your cursor on the Canvas to draw a line.
- When you are finished with the Pen tool, click the Move tool in the toolbar to select, move, edit, or delete objects you added to your image.
Tip: Press Shift to draw a straight line.
To draw a straight horizontal or vertical line, press and hold Shift as you click and drag.
Edit a Pen Line
Note: To edit a Pen line, you must select the Create as vector (Windows) or Create editable line (Mac) option before drawing it. Lines drawn without this option cannot be edited.
- Click to select the line on the Canvas.
- Complete any of the following to edit the line:
- Click and drag to move the pen drawing.
- Adjust the Tool Properties.
- Press Delete to delete the line.
Tool Properties
Edit the properties to customize the tool.

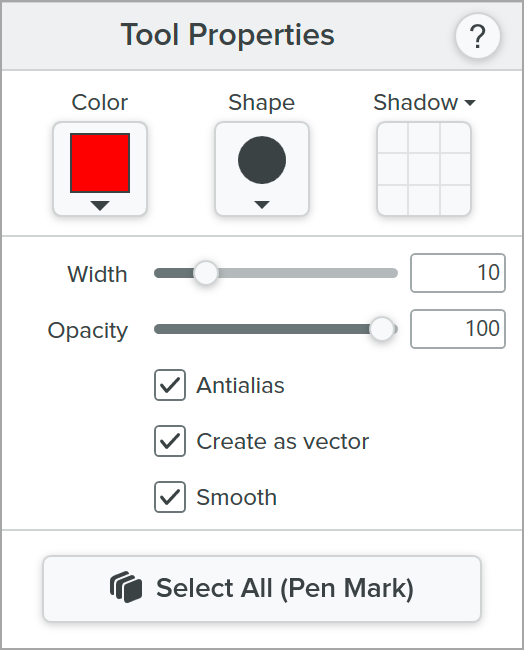

Snagit for Windows
Snagit for Mac
Tip: Edit all pen marks at the same time.
In Tool Properties, click Select All (Pen Mark), then edit the tool properties as needed. You must have Snagit for Windows version 2026.1.0 or later, or Snagit for Mac version 2025.3.0 or later.
Color
Click the dropdown and select one of the following to set the color:
- Click to select a preset theme color or color from the palette.
- Enter a Hex or RGB value. On Snagit for Windows, click Mode to switch between Hex and RGB modes.
- Click the Eyedropper button and then click to select a color from anywhere on the screen.

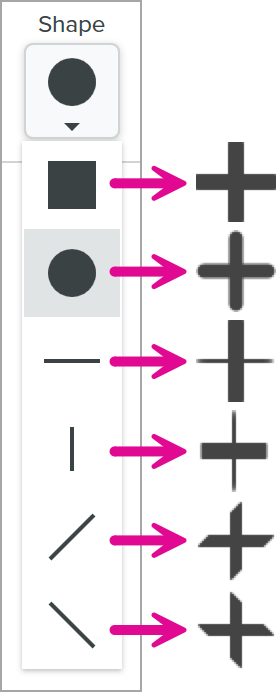

Shape (Windows only)
Click the dropdown to select the shape style.
Note: Snagit Mac only supports the circle shape for pen drawings. If you open a SNAGX file on Snagit Mac, lines drawn with other shapes display as though drawn with the circle shape. See Snagit File Format Compatibility.
Shadow
Click to select a shadow direction. To turn off the shadow, click to deselect the shadow direction.
Advanced Shadow Properties
Click the dropdown arrow to access additional Shadow properties:
- Color: Select a color for the shadow.
- Angle (Windows only): Set the direction of the shadow extending from the tool.
- Distance: Increase/decrease the distance between the tool and the shadow.
- Opacity: Increase/decrease the transparency of the shadow.
- Blur: Increase/decrease the clarity of the shadow.
Width
Drag the slider or enter a value in pixels to adjust the width of the arrow/outline/line.
Opacity
Drag the slider to adjust the transparency level.
Create as Vector (Windows) / Create Editable Line (Mac)
Select this option to draw a line that can be edited.
Antialias (Windows)
Select this option to blend pixel edges with the background.
Smooth (Windows)
Select this option to smooth sharp angles into curves.
Note: This option is only available with the circle Pen shape.
Smooth Curves (Mac)
Select this option to blend pixel edges with the background and smooth sharp angles into curves.
Tip: Save tool customizations as Quick Styles.
After you edit tool properties, save your customization as a Quick Style for future use. See Quickly Access Favorite Styles and Tools.
